$34,965 CAD

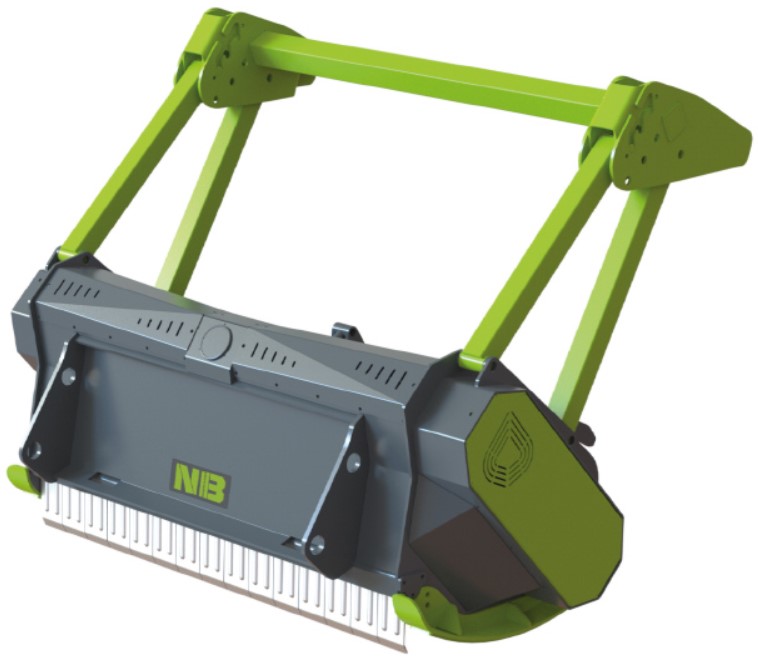

The Niubo KBX-F180 is a hydraulically driven mulching head sized for compact skid-steer loaders. It carries 42 fixed hammers on a 420 mm rotor across a 140 cm working width and handles material up to 15 cm in diameter. It requires roughly 70 hp and a hydraulic flow of 115 L/min, and features a C-type side transmission, protective back arch and replaceable skids; operating weight is 1057 kg.
| Power Type | Hydraulic |
|---|---|
| Suitable Machine Class | Skid steer loader, 70-120 HP |
| Hydraulic Block Control (HBC/Manifold) | N/A |
| Working width | 1800 mm |
| Weight | 1173 kg |
| Number of hammers | 36 |
| N° (col. 2) | 4 |
| Hydraulic motor displacement | 35/56 cc |
| Oil flow | 100/150 L/min |
| Pressure | 250 bar |
| Max. mulching diameter | 15 cm |
| Rotor diameter | 420 mm |
| Power requirement | 70-120 HP |
| Width | 2150 mm |
| Depth | 910 mm |
| Height | 1550 mm |
📍 Granby, QC, Canada — Shipping Canada-wide
